Why do we use XPS?

Our principal reason to use XPS is to identify the elements, chemical states, electronic states, and atom %s of the elements contained in the surface of a material.



What are Our Mutual Goals?



To improve the reliability of new experimentally measured XPS data by working together to produce:

  • improved charge referencing,
  • more accurate atom % quantitation,
  • more reliable reference BEs (from pure material),
  • better peak-fitting (less bad peak-fitting),
  • more reliable chemical state assignments,
  • improved reliability of BEs published in future literature, books, and databases

Who will work together to develop these improvements?



  • XPS scientists,
  • academic professors,
  • manufacturing engineers,
  • applications scientists,
  • industrial engineers,
  • university graduate students,
  • XPS instrument designers,
  • XPS experts

How do we reach Our goals?



  • by working in our spare time,
  • by working in small teams,
  • international round-robin testing,
  • define experiments to measure current results,
  • design and test new data collection protocols,
  • design and test new data processing protocols,
  • test capabilities of our internal XPS processing software,
  • purchase sheets of polymers for round-robins,
  • purchase inexpensive single crystals for round-robins,
  • purchase chemical compounds with sequential oxidation states,
  • test simple insulating device to enhance charge control and referencing,
  • develop new method for energy scale calibration using only Copper (Cu) metal

Our team effort is now taking Flight

A Groundbreaking Effort to Improve

the Reliability of

XPS BEs, Atom %s, and Chemical State Assignments

Contact Us, your new Team Mates!

The XPS Research Institute Inc.
501c3, Non-Profit, Educational



Located:  1091 Vineyard View Way S, Salem, Oregon, 97306, USA
E-mail:   bvcrist@xpslibrary.com,    bvcrist@xpsresearch.com
Cell in USA:  -1-650-919-3940

Surfaces: 2024

Surfaces of solids can vary from smooth to rough. The information obtained from a surface depends on the energy (1486 eV, 8.3 ang), elements in the surface, and tilt angle of the sample.  For monochromatic Aluminum X-rays the depth of information can range from 5 ang (0.5 nm) to 120 ang (~12 nm). When Chromium X-rays (5414 eV, 2.30 ang) are used the maximum depth of information can be as great as 350 ang (35 nm). When monochromatic Gallium X-rays (9250 eV, 1.34 ang) are used the maximum depth of information can be as great as 500 ang (50 nm).

Copied from ScientaOmicron website.

Chemical State Reliability: 2024

Assigning chemical states to the peaks obtained from peak-fitting the principal XPS peak(s) of a pure homogeneous inorganic chemical compound (or a polymer) is normally easy if you already know the true chemistry of the compound and the energy scale has been properly charge referenced. This assumes that you know how to draw chemical structures, understand bond polarization, and have properly assigned chemical states to XPS peak-fits for > 6 months.

Assigning a chemical state to any peak from an unknown material in a peak-fit is often difficult for all XPS users even though they know what elements are present, and the relative abundance (empirical ratio) of each element. Why?

The BEs in most literature sources and the NIST Database of BEs are not (very) reliable due to 4 significant problems. The 4 major problems in data-banks and appendices are due to: (a) the widespread use of different calibration energies for Cu, Ag, Au, (b) the widespread use of different energy scales (eV/step), (c) the widespread use of a “user-defined” BE for the C 1s peak attributed to hydrocarbon moieties, and (d) the absence of a reliable and reproducible charge referencing method.

The uncertainty ranges in BEs for conductive elements was found by analyzing the reference grade BEs in the NIST XPS Database (see Periodic Table that follows).  For conductive elements the uncertainty ranges from +0.2 to -0.3 eV, ignoring outliers at -0.5 to -1.2 eV. For non-conductive insulators the uncertainty ranges from +/- 0.5 eV to as much as +/-4.0 eV.



Atom %s, SFs, IMFPs: 2024

Recent emphasis and concern about the reliability and reproducibility of physical sciences data has encouraged a reexamination of the usage of XPS for materials analysis and characterization, especially as XPS is now the most commonly used method for thin material (up to a few 100A thickness) and is often performed by non-experts in a turnkey manner using highly automated software. One of the main issues concerns the reliability of absolute accuracy determination (as opposed to precision) of the atom% elemental composition produced.

The usual method for obtaining elemental composition from homogeneous materials is to use the relative intensities of core level XPS signals measured from the key peaks in the spectrum, and then normalize by dividing those XPS signal intensities (peak areas) by their respective Experimental Relative Sensitivity Factors, e-RSF’s or Theoretically Relative Sensitivity Factors, t-RSF’s..

In a recent paper, LiF was analyzed using Scofield RSF and TPP-2 for IMFP, the best accuracy for the atom% was +/- 5% even after very extensive, time consuming analysis of high S/N spectra and including all of the many satellite peaks.  For polymers containing just C, O, N, and Si, many scientists find the accuracy to be +/- 5%.  Elements in the first row produce less complicated spectra probably due to the simple atomic structure.

The presence of band-gaps for insulators makes it easier to identify the endpoints for measuring peak areas (signal intensities). In comparison, when 100% pure transition metals oxides are measured the best accuracy seems to be at best +/-15%.

The +/-15% uncertainty is not very useful, so we are working to develop a set of modified Scofield RSF and a set of endpoints that ignore nearby satellites. The hop is to improve accuracy for atom% to +/-5%.

XPS BEs are Not (Very) Reliable

WHY?

XPS Atom %s are Not (Very) Accurate

WHY?



Our Claim is:
XPS BEs in NIST Database and Most Academic Publications are Not (very) Reliable.





Our Question to all XPS Scientists is:



Do you Agree?
Are most published chemical state assignments
Reliable or indeed Not Very Reliable?

If you agree that they are not very reliable,
then what will you do with your next set of peak-fitted XPS BEs?

XPS produces two (2) fundamental types of data from the Surface.

BEs and Atom %s

After 50 years of using XPS, we still have trouble with BEs and Atom %s.
This is a bad situation. We look like we are lazy or not capable.

If a Native Oxide exists in its’ Thermodynamically Stable form then,



WHY does a Comparison of BEs show Large Differences?



Will we work together to improve XPS results in the near future?
To start, E-mail:   bvcrist@xpsresearch.com

Causes of these BE Problems

If you agree, then the Features & Causes of the Binding Energy (BE) Problems (Our Problems) are:

  1. More than 80% of all samples are insulators that require charge compensation and charge referencing
  2. Roughly 90% of journal publications are produced by university professors and their poorly trained students
  3. A few XPS facilities use experienced XPS scientists to maintain an XPS instrument and help tens of students
  4. Eighty percent (80%) of BEs in NIST database are from Wagner’s collection of BEs collected from 1970-1990 by university students.
  5. BEs were and are still collected by university students who receive only a few days training from the last instrument operator
  6. Histograms of pure elements listed in Wagner’s (NIST) database show large dispersion and high standard deviations. BEs vary by +/- 0.4 eV
  7. Histograms of insulators listed in Wagner’s (NIST) database show large dispersion and large standard deviations. BEs vary by +/- 1.2 eV
  8. Wagner’s BEs are the same BEs that are published in NIST database, PHI handbooks, Seah’s handbook and others.
  9. Thousands of authors trust and use Wagner’s BEs because they are published in US NIST database and PHI handbooks.
  10. This means almost everyone is using Wagner’s collection of BE have large standard deviations
  11. Thousands of authors trust and used Wagner’s BEs because they are published in NIST database and PHI handbooks.
  12. From 1970 to 1990 BE Calibration was based mainly on BE of Ag (3d5) and Au (4f7).  Cu (2p3) BE was almost never reported.
  13. Only 1 or 2 low BE calibration values from Ag or Au are reported in journals in today’s publication
  14. Many publications list the “expected” reference calibration BEs in a publication, they do not report “measured” calibration BEs
  15. Cu (2p3) BE (932.6 eV): A calibration energy appears at high BE end is almost never reported. Degrades BEs > 600 eV.
  16. Energy Scale ranges depended on preference of instrument makers until 2005.
  17. The Cu (2p3) BE varies by >0.6 eV  (932.2 to 932.8 eV) between different instruments.
  18. The Cu (2p3) BE setting causes the energy scale to stretch and to vary significantly above 600 eV; errors increase at higher and higher BE
  19. Authors do not check Energy scale calibration values on same date as data to be published
  20. Instrument operators usually do not measure or report the energy scale BEs on a weekly basis to produce a trend (run) chart
  21. Chemical State assignments are based on old unreliable NIST BEs and old literature assignments also based on unreliable NIST BEs
  22. Journal reviewers do not require sufficient calibration and description of instrument parameters from authors
  23. Operation and Effects of Flood Gun is seldom documented by the instrument makers
  24. Optimizing the quality of charge compensation by adjusting XYZ and voltage is seldom attempted
  25. Charge Referencing is still based on the C (1s) hydrocarbon peak of adventitious carbon
  26. Charge Compensation (control) is still poorly understood and is a form of magic.
  27. When flood gun is used on various native oxides (AlOx, BeOx, MgOx, SiOx) then C (1s) BE is biased”
  28. BE of C (1s) hydrocarbon peak is known to vary based on the amount (thickness) of the adventitious carbon layer
  29. C (1s) BE depends on the dielectric nature of the surface.
  30. C (1s) BE for adventitious hydrocarbon has been reported to appear from 284.2 eV to 285.2 eV.
  31. C (1s) BE on noble metals varies from 284.2 to 284.6 eV.
  32. C (1s) BE on thin, conductive native oxides vary from 284.2 to 286.3 eV
  33. The C (1s) of adventitious hydrocarbons was reported as 284.6 eV from 1976  to 1992.
  34. Most XPS scientists still use C(1s) BE of adventitious hydrocarbons for charge referencing
  35. PHI’s new handbook reports 284.8 eV, a 0.2 eV increase without support evidence or justification.
  36. ISO, VAMAS, and ASTM do not yet define the C (1s) BE for adventitious hydrocarbon, which is used for charge referencing
  37. Current standards bodies (ISO, VAMAS, ASTM…) do not and can not enforce their documentary standards
  38. Peak-fitting results are not reliable because most peak-fit parameters are allowed to vary with no valid basis.
  39. FWHM values are seldom, if ever, based on known FWHM and have no basis for use.
  40. Quantitative atom% results are not reliable because data analysts (processors) use various methods to integrate peak areas, different end-points, different, sensitivity factors, and different IMFP correction factors.
  41. When empirical formula or atom% results are published there is no proof that Transmission Function is valid.
  42. Surface depth of 5-10 nm may not be homogeneous.

Journal & Website Publications Documenting the Problem with Unreliable BEs

  • 1980 – R.J. Bird, P. Swift, J. Electron. Spectrosc. 21 (1980) 227.
  • 1982 – P. Swift, Surf. Interface Anal. 4 (1982) 47.
  • 1984 – D.M. Hercules, J.C. Klein, C.P. Li, J.F. Black, Appl. Spectrosc. 38 (1984) 29.
  • 1984 – S. Kohiki, Appl. Surf. Sci. 17 (1984) 497.
  • 1984 – S. Kohiki, K. Oki, J. Electron Spectrosc. 33 (1984) 375.
  • 1990 – C. J. Powell, and M. P. Seah, Journal of Vacuum Science & Technology A 8, 735 (1990).  (Rev on Precision and Accuracy).
  • 1996 – B. Vincent Crist, J. Surface Analysis (Japan), Vol. 2, 21-58 (1996). A Critical Review of Popular XPS Data-banks
  • 1997 – B. Vincent Crist, XPS International Web Site. XPS International LLC, California, USA, https://www.xpsdata.com, (Accessed 17.05.24).
  • 1999 – B. Vincent Crist, IUVSTA World Experts on XPS St. Malo,, France, April 17 (1999).
  • 2004 – B. Vincent Crist, XPS International Web Site. XPS International LLC, California, USA, https://www.xpsdata.com, (accessed 24.01.24).
  • 2018 – B. Vincent Crist, The XPS Library Web Site.  XPS International LLC, California, USA, https://www.xpslibrary.com  (accessed 25.01.24)
  • 2019 – B. Vincent. Crist, J. Electron Spectrosc. Relat. Phenom. 231 (2019) 75. XPS in Industry – Problems with binding energies in databases
  • 2020 – G. Greczynski, L. Hultman, Progress, Mater. Sci. 107 (2020) 100591.
  • 2021 – G. Greczynski, L. Hultman, Sci Rep. 11 (2021) 11195.
  • 2021 – G. Greczynski, L. Hultman, Applied Surface Science 542 (2021) 148599.
  • 2021 – G. Greczynski & L. Hultman, Scientific Reports | (2021) 11:11195.
  • 2022 – G. Greczynski, L. Hultman, J. Appl. Phys. 132 (2022) 011101.
  • 2022 – G. Greczynski, L. Hultman, Vacuum. 205 (2022) 111463.
  • 2023 – G. Greczynski et al., Sci. Adv. 9, eadi 3192 (2023).
  • 2023 – G. H. Major et al, J. Vac. Sci. Technol. A 41(3) May/Jun 2023.

Examples of XPS BE Problems

NIST Reference BEs are Useful as a Guide, but are Not (very) Reliable

Large Std. Dev. values indicate large range in BEs which decreases reliability of “Mean BE”



Range of Std. Dev for Conductors in Periodic Table

Acceptable Range for Std. Dev.  0.10   to  0.30
Poor Range for Std. Dev. 0.31  to  0.60
Un-reliable Range for Std. Dev.  >0.61



Insulators have Std Dev. ranging from 0.30 to 1.9     (outliers:     LiI, KCl, Sc)

NIST Reference BEs are Useful as a Guide, but are Not (very) Reliable

Compare BEs in rows 1 and 2 from the
XI SpecMaster Database to the NIST Mean BEs

Histograms reveal Why NIST Reference BEs are Unreliable



Our problems are deeply rooted in the various BE Scales published in old journal papers.

Histogram for Ag (3d5) Calibration BE in NIST SRD 20 Database of BEs
Histogram for xxx Calibration BE in NIST SRD 20 Database of BEs

Our problems are deeply rooted in the various BE Scales published in old journal papers.

Histogram for Cu (2p3) Calibration BE in NIST SRD 20 Database of BEs
Histogram for xxx Calibration BE in NIST SRD 20 Database of BEs

XPS Resolves Chemical Shifts as Small as 0.2 eV

This Overlay of almost identical alloys proves it.

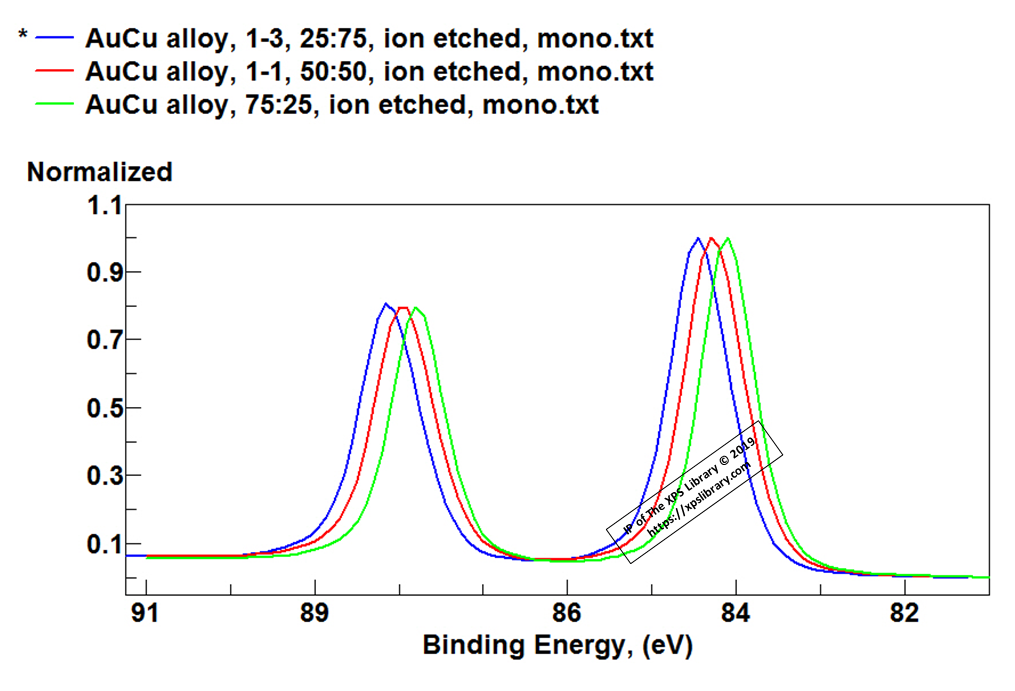

Small Chemical Shifts for Au 4f7 seen in Au:Cu Alloy Series

Serious problems, that today’s international XPS scientists face, are rooted in the various BE Scales published in old and recent journal papers

Small Chemical Shifts for Cu 2p3 seen in Au:Cu Alloy Series

Serious problems, that today’s international XPS scientists face, are rooted in the various BE Scales published in old and recent journal papers.

Non-Calibrated Charge Compensation Methods produce MOST
of the Uncertainty and Errors in BEs

Potential Patterns due to Erratic, Intermittent, or Irregular Delivery of Charge Compensation Particles or Photons

Chemical State Assignments based on NIST BEs

Chemical States Assignment based on NIST BEs

Serious problems, that today’s international XPS scientists face, are rooted in the various BE Scales published in old and recent journal papers

Better control of Charge Compensation Beams and New Charge Referencing methods are key.

Learn more about this
Chemical State Assignment based on Real Reference Spectra

Serious problems, that today’s international XPS scientists face, are rooted in the various BE Scales published in old and recent journal papers, bad peak-fitting parameters, undocumented charge compensation methods, charge referencing errors,

Serious problems, that today’s international XPS scientists face, are rooted in the various BE Scales published in old and recent journal papers

Better control of Charge Compensation Beams and New Charge Referencing methods are key.

Learn more about this

Our XRI Team of experienced XPS instrument operators and scientists develop new methods and protocols for everyone to use.

An International Team of XPS Scientists and Trouble-shooters

XRI calls on and relies on expert XPS scientist, engineers, and analysts with many years of experience on XPS Instruments from all makers:  Kratos, PHI, Scienta, Specs, and Thermo who analyze the difficult samples:  insulators, rough surfaces, high dielectrics, powders, and non-conductive fibers.

The XPS Research Institute  (non-profit, 501c3, for education)

Our Corporate Sponsors

XRI Products and services

Discover What XRI Members Do and How We Do It

And then join the XRI team and work with your fellow team members to invent and develop reliable solutions to one of Many Problems in XPS Information.

Surface Charging

Uncontrolled Charging

Adventitious Carbon

Improve Charge Referencing

BEs for Cu (2p3)

NIST BEs NOT Reliable

International Team Effort

Greetings!   Wie Gehts!  Saludos!  Salvete!  Salutations!  Konnichiwa! Insamal!  Hälsningar!  Privet!  Vær hilset!

Our international team of application engineers, demo engineers, instrument managers, QC/QA people, XPS scientists, dedicated professors and everyone who are responsible to produce reliable information from raw XPS spectra, are very much appreciated for using your valuable time to improve XPS assignments and advance material science and product engineering.

XRI Develops Practical, Real-World Tables of
Practical XPS Reference Data

XRI will produce an App that can be used while using your XPS or Synchrotron Beamline

A Periodic Table with BEs of Metals, Common Oxides, and FWHMs

A Table of Peak FWHM to assist Peak-fitting


Free Table of Useful XPS BEs & FWHMs

Hello! XRI is an International Team of Scientists, Chemists, Material Scientists, Bio-chemists, Product Engineers, QC/QA, Cleaners, and all those who strive to make all products a bit safer, a bit stronger, and better.

XPS – Our Best Tool for Chemical Analysis !

XPS Training Course

XPS goes Virtual

Professor Charles Fadley

Latest news

Our HOME page is nearing completion.  Jan 30.

The XPS Research Institute Inc (501c3, DNP)
The XPS Research Institute Inc (501c3, DNP)
