X-ray Beam Alignment – ZnS
Vince Crist @ Library
2026-10-24T21:35:37-07:00

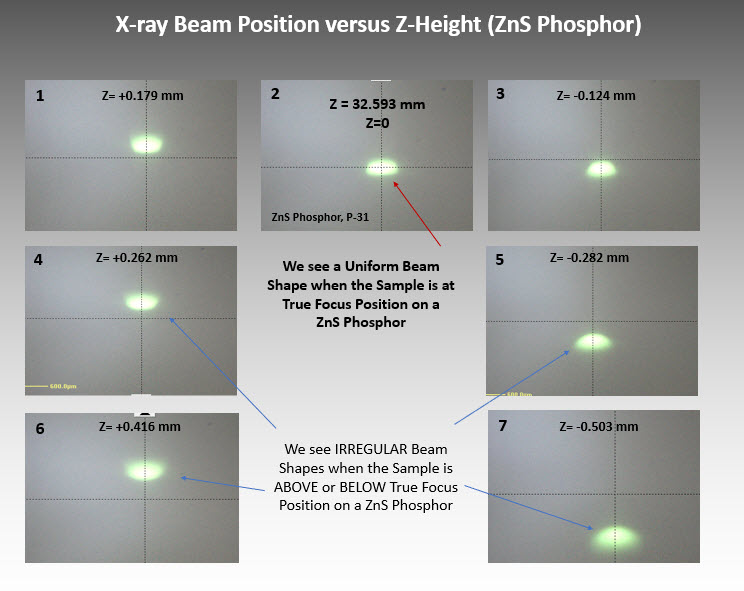

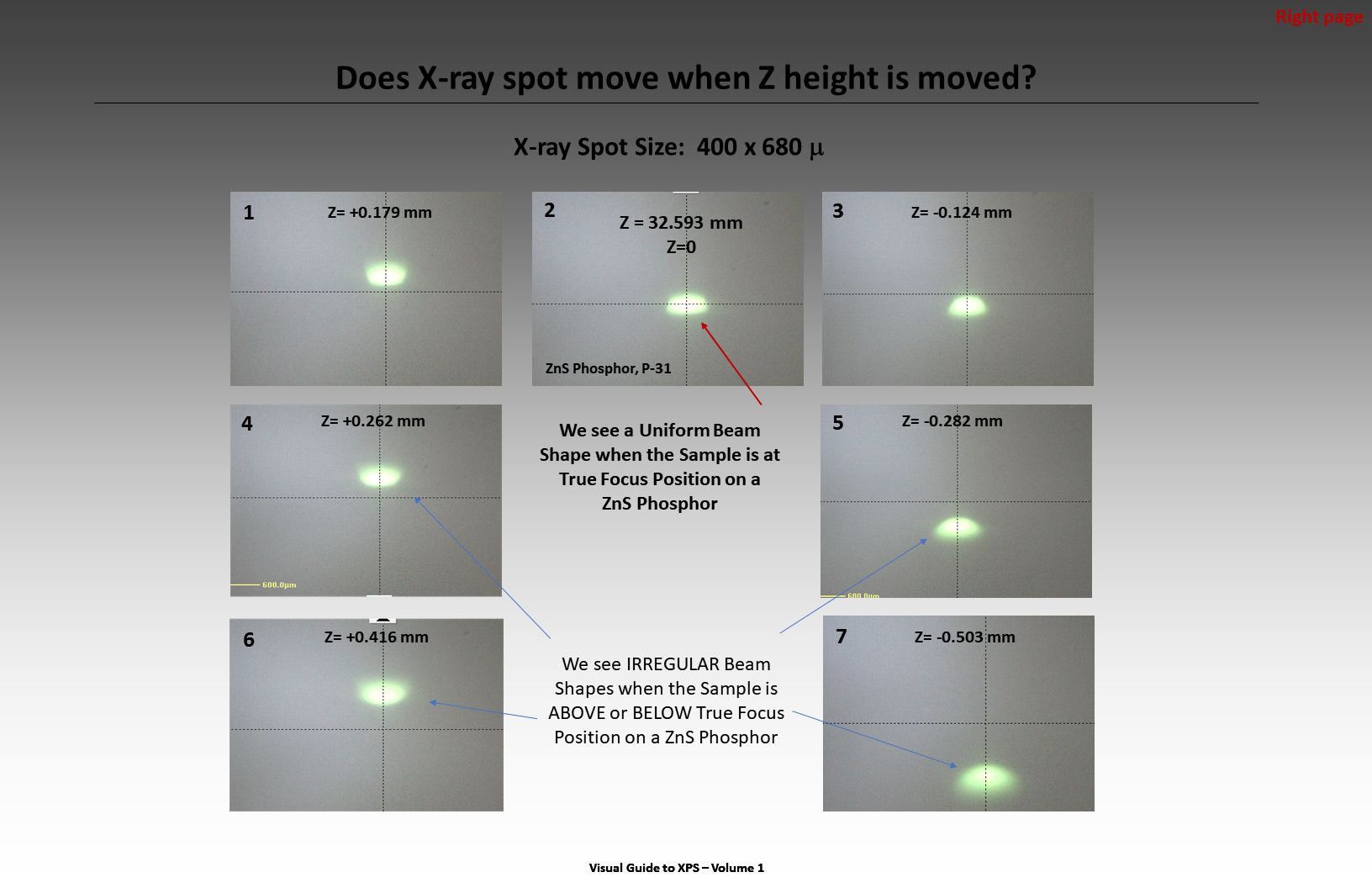

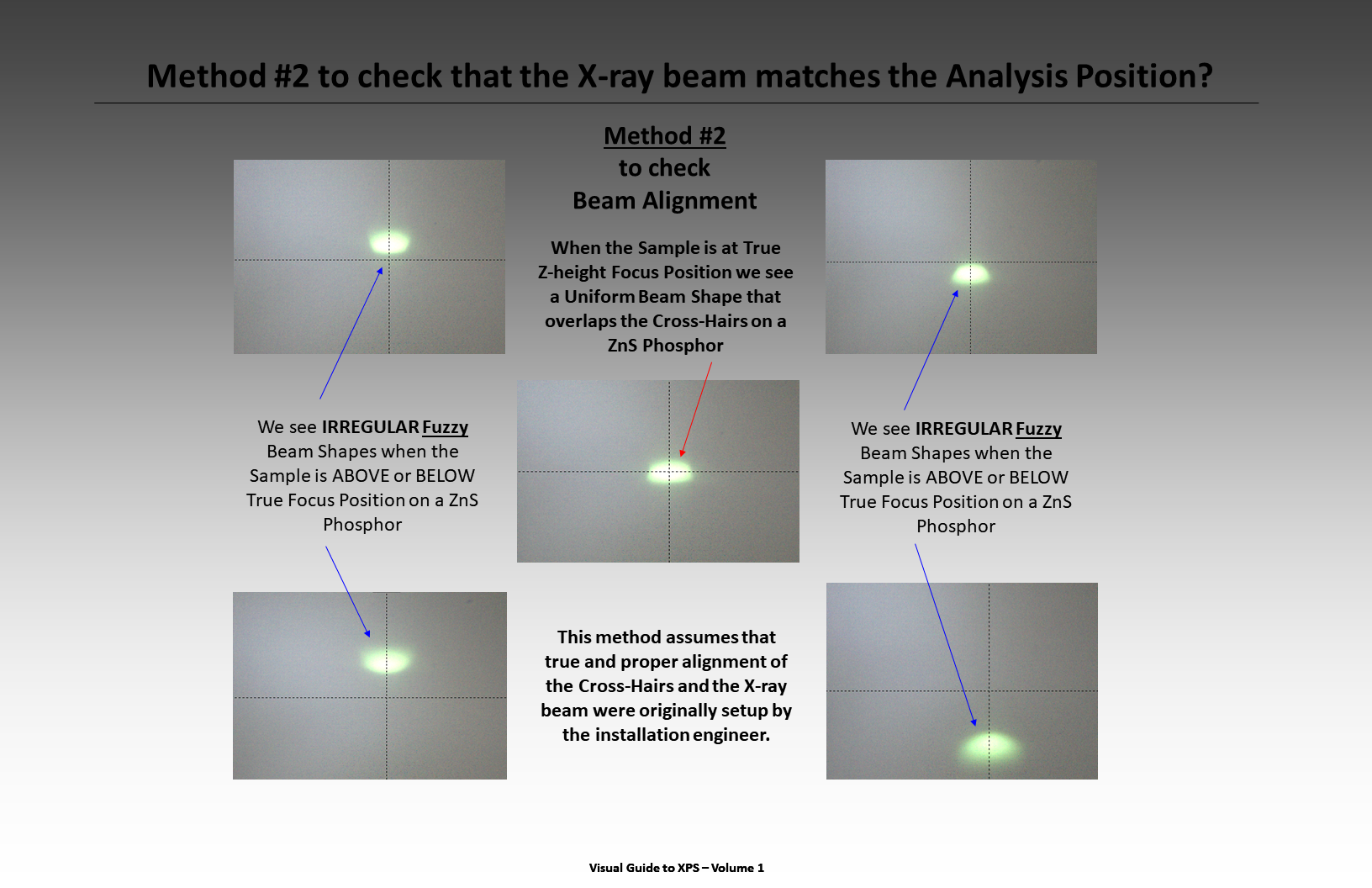

X-ray Beam Alignment
using ZnS Phosphor

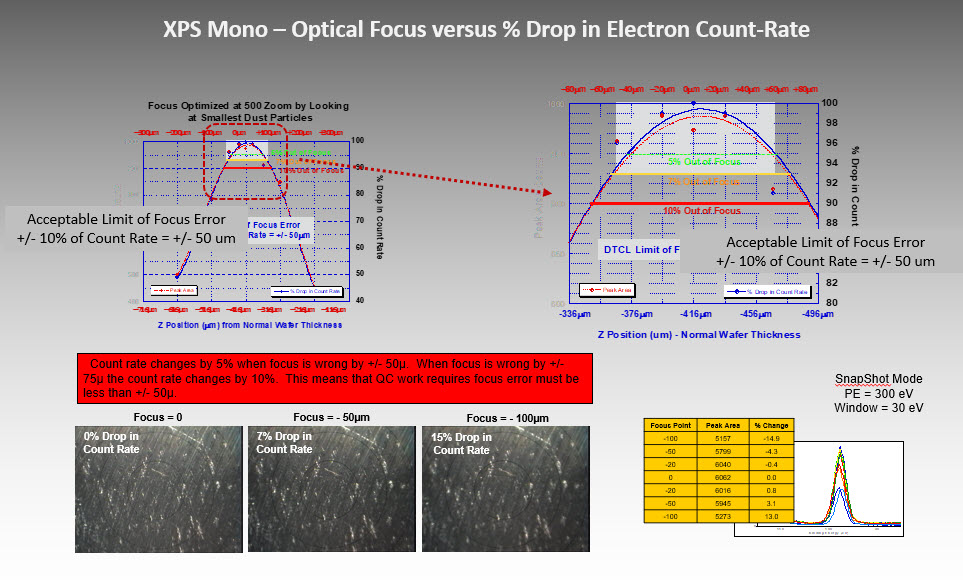

X-ray Beam Focus vs Optical Beam Focus
